Ultra thin battery includes two types: rechargeable thin lipo battery, primary ultra thin battery(non rechargeable),with very thin feature, widely used in many special projects and products, such as OTP cards, power cards, RFID, security system, tracking devices, medical devices.

Typical applications:

• OTP cards
• Power cards
• Smart credit cards
• Active RFID
• Tire pressure testing system
• GPS System
• Nonstop charging system,
• Container identification
• Alarm system
• Signal lights and the post indicator transfer
• Back-up record power
• Medical devices
• Intelligence parking lot,
• Vehicle charge checking
• Mine personnel identification
• Automated railcar identification management
• Automated road charge management
• Automated voyage passenger luggage identification transport management
• Vehicle entry and exit control
• Campus all-purpose card
• Public transportation card
• Associate card,
• Driver license card
• Wireless and other military equipment
• Medical card
• Animal identification(raising cattle, sheep, pigeon, etc)
• Automated management of logistic & storage
• Automobile remote control lock
• Intellectualized door
• Smart security cards
• Wireless asset tracking tags
• Electronics record tracking system
• Digital devices
• E-connecting goods
• RFID tags
• Powered smart cards
• RFID Device
• Sensors

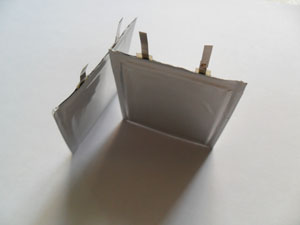

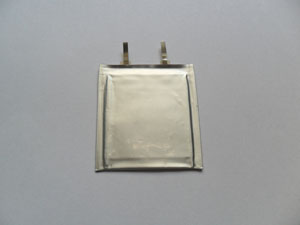

1-     Rechargeable ultra thin battery.

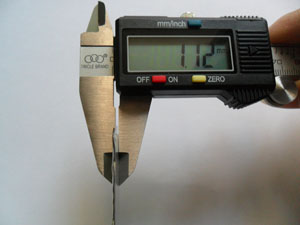

Lithium polymer batteries with thickness of less than 1.5mm are always called rechargeable ultra thin batteries. So far, reliable thinnest rechargeable lipo battery is made with 1mm thickness. As a rechargeable lithium battery, this type of ultra thin battery has features as below:

• Ultra thin, can meet special needs of some applications which require very small thin power parts.It’s sometime like a paper with less than 1 mm thickness.
• Long cycle life,300 times
• Eco-friendly, no environmental pollution
• Safe, no fire no explosion under use abusement.
• No memory effect
• Economical in long term with rechargeable features.
• High voltage with 3.7V.













Some lipo rechargeable ultra thin battery regular models(Can also be customized for different sizes, capacity and voltages):

Model	Voltage(V)	Capacity(mAh)	Thickness(±0.1mm)	Width        (±0.5mm)	Height     (±0.5mm)
PD014461	3.7v	180mAh	1	44	61
PD114046	3.85v	120mAh	1	40	46
PD124048	3.85v	130mAh	1	30	40

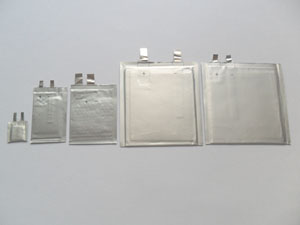

2-     Primary ultra thin battery(Non rechargeable)

This type ultra thin battery has similar appearance like rechargeable lipo battery, but has different materials inside, it’s made of lithium manganese dioxide technology.









Unique advantages:

• Ultra high energy density. 200%~300% of lithium polymer battery, as high as 400WH/kg.it means much smaller size and much higher capacity, longer work time.

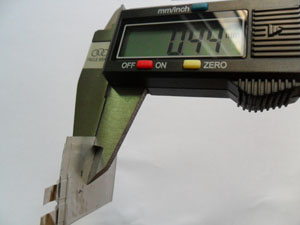

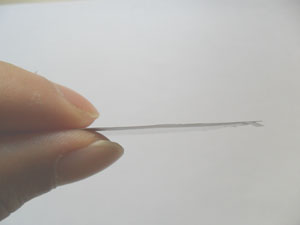

• Ultra thin. It’s thickness can be as small as 0.4mm, fits requirements of almost all related intelligent thin cards and thin smart devices.
• Long shelf life. Over 10 years under standard environment temperature.
• Low self discharge rate. Less than 2% per year.
• Low cost. Cheap price for each unit for replacement.
• Safe. No fire, no explosion, great abusement tolerance.
• Wide operation temperature. -20℃ ~+60℃

Regular primary ultra thin battery models list(Can also be customized for different sizes, capacity and voltages):

Model	Voltage （V）	Capacity （mAh）	Constant discharge current （mA）	Pulse current （mA）	Dimensions			Operation Temp （℃）	Shelf Life （years）
					T     (mm)	W  （mm）	H  （mm）
PDCP042229	3.0 V	18mAh	1mA	2mA	0.45	22±0.5	29±0.5	-20℃~60℃	10
PDCP042345	3.0 V	35mAh	2mA	4mA	0.45	23±0.5	45±0.5	-20℃~60℃	10
PDCP042529	3.0 V	22mAh	2mA	4mA	0.45	25±0.5	29±0.5	-20℃~60℃	10
PDCP042922	3.0 V	15mAh	1mA	2mA	0.41	29	23	-20℃~60℃	10
PDCP044040	3.0 V	50mAh	5mA	10mA	0.45	40	40±0.5	-20℃~60℃	10
PDCP044560	3.0 V	100mAh	10mA	20mA	0.45	45.5	60	-20℃~60℃	10
PDCP053050	3.0 V	80mAh	15mA	30mA	0.5	30	50	-20℃~60℃	10
PDCP054848	3.0 V	100mAh	20mA	40mA	0.5	48.5±0.5	48.5±0.5	-20℃~60℃	10
PDCP064848	3.0 V	200mAh	20mA	50mA	0.6	48.5±0.5	48.5±0.5	-20℃~60℃	10
PDCP084848	3.0 V	320mAh	20mA	50mA	0.8	48.5±0.5	48.5±0.5	-20℃~60℃	10
PDCP073545	3.0 V	160mAh	10mA	20mA	0.7	35	45	-20℃~60℃	10
PDCP101010	3.0 V	8mAh	1mA	2mA	1.05	10.5	10.5	-20℃~60℃	10
PDCP101020	3.0 V	22mAh	3mA	5mA	1	10.0±0.5	20.0±0.5	-20℃~60℃	10
PDCP101220	3.0 V	25mAh	0.5mA	1mA	1	12±0.5	20±0.5	-20℃~60℃	10
PDCP101830	3.0 V	45mAh	10mA	25mA	1	18	30	-20℃~60℃	10
PDCP102015	3.0 V	30mAh	2mA	5mA	1	20±0.5	15±0.5	-20℃~60℃	10
PDCP104848	3.0 V	420mAh	100mA	200mA	1.05	48.5±0.5	49	-20℃~60℃	10
PDCP105050	3.0 V	420mAh	100mA	200mA	1.05	50	50	-20℃~60℃	10
PDCP105075	3.0 V	450mAh	200mA	300mA	1.05	45.2	75	-20℃~60℃	10
PDCP105256	3.0 V	500mAh	30mA	50mA	1.05	52	56	-20℃~60℃	10
