Ultra narrow lipo battery

Short Description:

Full series of ultra narrow lipo batteries, from 5.5mm to 10mm with different thickness and length, powerful for wearable devices products such as smart rings, smart band,smart glass, smart watch, and so on.

Description

Narrow lipo battery has become a very important special battery for worldwide designers of wearable devices, because the space for battery is very small and limited, batteries must be as small as possible.

Narrow lipo battery PD540845

Among all the wearable devices, Smart rings, smart bands, smart watch are arm and hand weared, to supply power for the device, the lipo battery must be designed to be very narrow, as narrow as possible while being able to supply as high capacity power as possible. This is a big challenge for both wearable devices designers and lipo battery manufacturers.

To meet this urgent and huge demand from wearable devices market for narrow battery, Padre Electronics designed over 40 models of ultra narrow lipo batteries, the width varies from 5mm to 10mm. We got big attention from global design companies, especially when we developed and pushed the model PD400529 world’s narrowest lipo battery to market, it was called “wearable devices second spring”, as it saved many design solutions with a super narrow width battery design, in other words, it created many new increadible amazing wearable products.

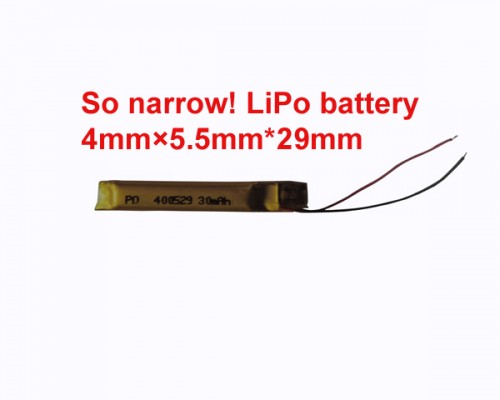

world’s first 5mm width narrow lipo battery

Padre narrow lipo battery model list is as below, If you have different requirements, you are welcome to discuss with us for custom battery design solutions, we are open for more new battery designs and developments.Note: If you are looking for ultra small battery, click the ultra small lipo battery series. and ultra thin batteries here.

Model	Capacity mAh		Dimension/mm		ImpidencemΩ	Weight g
Model	Capacity mAh	Thickness±0.2	Width±0.2	Height±0.5	ImpidencemΩ	Weight g
PD400529	30 mAh	4	5.8	29	600	1
PD300728	40 mAh	3	7.3	28	500	1.2
PD280809	9 mAh	2.8	8	9	3000	0.3
PD330819	30 mAh	3.5	8	19	600	1
PD330819H	50 mAh	3.3	8	19	600	1
PD350819	35 mAh	3.5	8	19	550	1.1
PD360821	35 mAh	3.6	8	21	550	1.1
PD350825	50 mAh	3.5	8	25	430	1.5
PD500826	70 mAh	5	8	26	360	1.8
PD360828	55 mAh	3.6	8	28	380	1.5
PD360829	60 mAh	3.6	8	29	400	1.6
PD350833	70 mAh	3.5	8	33	360	1.8
PD250834	40 mAh	2.5	8	34	500	1.2
PD350835	80 mAh	3.5	8	35	360	1.9
PD400838	110 mAh	4	8	38	300	3
PD540845	160 mAh	5.4	8	45	200	3.6
PD350910	12mAh	3.5	9	10	2000	0.3
PD700916	50mAh	7	9	16	600	1.5
PD350919	40 mAh	3.5	9	19	500	1.2
PD360920	40 mAh	3.6	9	20	500	1.2
PD370922	50 mAh	3.7	9	22	420	1.5
PD340923	40 mAh	3.4	9	23	500	1.2
PD350925	55 mAh	3.5	9	25	430	1.6
PD370925	60 mAh	3.7	9	25	390	1.6
PD230926	37 mAh	2.3	9	26	560	1.1
PD300926	55 mAh	3	9	26	400	1.6
PD410930	80 mAh	4.1	9	30	650	2.3
PD500930	100 mAh	5	9	30	300	3
PD500935	120 mAh	5	9	35	320	3.2
PD300937	68 mAh	3	9	37	350	1.8
PD390937	80 mAh	3.9	9	37	350	2
PD400947	130 mAh	4	9	47	310	3.8
PD370966	200 mAh	3.7	9	66	150	5.5
PD431165	250 mAh	4.3	11	65	130	6
PD601368	520 mAh	6	13	68	70	11
