Lithium ion battery(Li-ion battery) advantages:

1-High energy density
2-High voltage
3-Low self discharge
4-No memory effect
5-Eco-friendly
6-Long cycle life

·3.7v 2200mAh ·7.4v 4400mAh ·11.1V 2200mAh  11.1v 6600mAh ·14.8v 4400mAh ·More batteries

What is lithium ion battery?

Lithium ion battery (Li-ion battery)is a rechargeable lithium battery that uses the Lithium alloy oxide for anode, graphite for cathode. Lithium battery application originated from pace maker, because of low self discharge rate and smooth discharge, its very suitable to be embedded into human body without frequent changing. in 1992,Sony developed the first commercial lithium ion battery, this brought revolutionary changes to portable electronics, such as the mobile phones, laptops, became smaller and lighter with the new type battery.

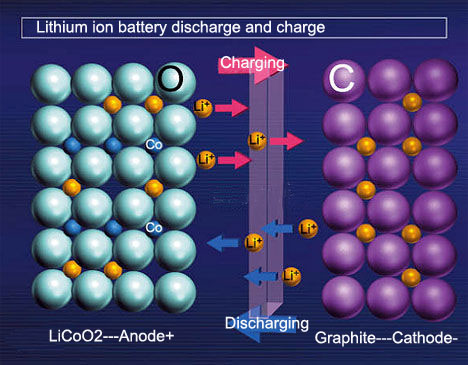

How do they work?

The electrons get embedded into the cathode grooves when charging, when discharging, they gets out from cathode and go to anode grooves, a come and back, its a cycle.

Chemical reaction on anode when charging:
LiCoO2==Li(1-x)CoO2+XLi++Xe-(electron)
Reaction on cathode when charging
6C+XLi++Xe- = LixC6
Reaction on cathode when discharging：
LixC6 → xLi+ + xe- + 6C

Lithium ion battery major parameters:

Open circuit voltage:  LiCoO2 and LiMn2O4 material type are 3.7v, NiCoMn material is 3.6V
Capacity: Padre can produce 1mAh to 50Ah single cells, it can be higher by parallels.
Charging cut off voltage: 4.2V±0.05v
Discharge cut off voltage: 2.75(some IC set it higher 3.0V)v±0.05v
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Work humidity: less than 85%
Storage temperature: -20℃~40℃
Storage humidity:less than 85%
Continuous discharge current: recommend 0.2C
Max continuous discharge current: 1C
Peak discharge current: 2C
Charge current: recommend 0.5C
Max charge current: 1C

Padre Lithium ion battery cells models:

Model	Voltage	Capacity(mAh)	Diameter(mm)	Height(mm)	Weight
PDICR10440	3.7V	320	10	44	10g
PDICR14250	3.7V	280	14	25	8g
PDICR14430	3.7V	700	14	43	23g
PDICR14500	3.7V	750	14	50	25g
PDICR16650	3.7V	1700	16	65	45g
PDICR17500	3.7V	1100	17	50	36g
PDICR18500	3.7V	1400	18	50	40g
PDICR18650	3.7V	2000	18	65	50g
PDICR18650	3.7V	2200	18	65	55g
PDICR18650	3.7V	2400	18	65	58g
PDICR18650	3.7V	2600	18	65	60g
PDICR18650	3.7V	2800	18	65	62g
PDICR18650	3.7V	3000	18	65	65g
PDICR22650	3.7V	3500	22	65	95g
PDICR26650	3.7V	4000	26	65	105g
PDICR26650	3.7V	4500	26	65	115g
PDICR32650	3.7V	5000	32	65	130g

Lithium ion battery advantages:

1-High energy density. it’s energy density reaches 600Wh/kg, almost 7 times of lead acid battery.

2-Long cycle life. For example, normal mobile phone battery is lithium ion battery, they can have 500 times cycle life, generally 3 years with 100%DOD.
3- High voltage. 3.7V is about 3 times higher than NiCd and NiMh battery voltage.
4-High Power. with special design, it can have high rate discharge rate as 50C.
5-Low self discharge rate. its one if the most obvious features of lithium ion battery, generally speaking it can be as low as 1% per month, less than 1/20 of NiMh battery.
6- Light weight. With the same size, its weight can be only 1/6 of lead acid battery.
7- Environmental friendly. In production, using, and recycle procedure, no harmful metals such as lead, Cd, which poisons the earth ground and water.

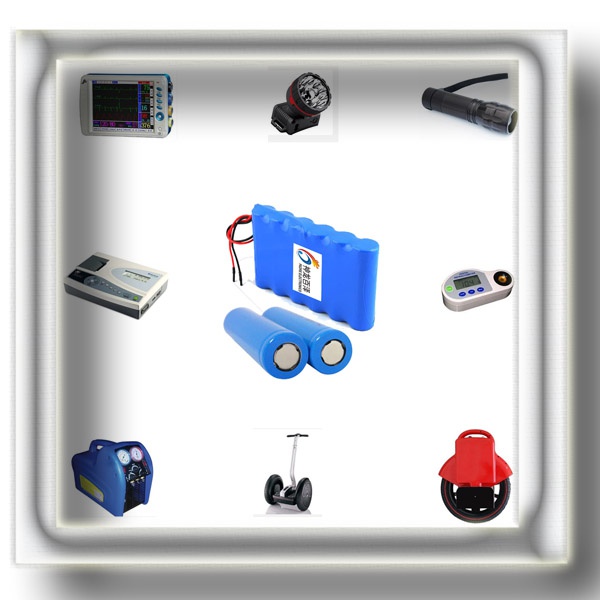

Applications:

Lithium ion battery can be used for many products.

Digital electronics, mobile phones, digital cameras, laptops, panel pc, mp3,mp4, game player,cordless phone,video glass.
Transport system, GPS device, bicycle lighting, ebike, electric solo wheer bicycle.
Medical devices
Military mobile power
Industry portable test devices and tools
