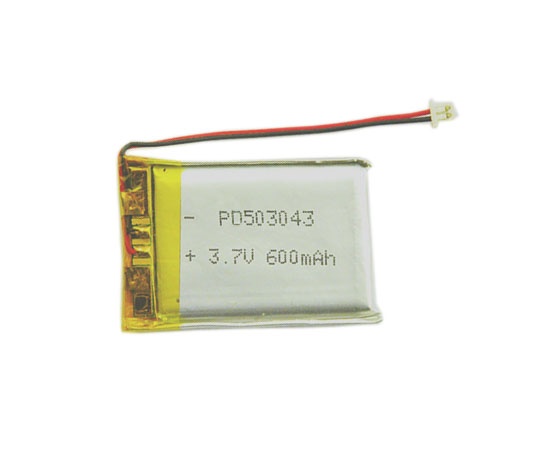

Lithium polymer battery 3.7V 600mAh PD503043
3.7V 600mAh lithium polymer battery,higher capacity,lighter weight,thin and small size,long cycle life of 500 times,no memory effects.
3.7V 600mAh lithium polymer battery (lipo battery pack)
Model: PD503043
Capacity:600mah
Voltage;3.7V
Thickness:5.0±0.2mm
Width:30.0±0.2mm
Height:43.0±0.5mm,With PCM will be 2mm more.
Weight: about 11.0g
Recommend charging current: 0.2C
Standard charging current: 0.5C
Cable and connectors: 10cm cables with JST connector, customized are available.
PCB/PCM:
Over-charge voltage 4.25V±0.05V
Over discharge voltage :2.7V±0.1V or 3.0V±0.1V
Over curernt: 1.2A(2.7V~4.25V)customized
For more models click here, if you don’t find the right model for your application, please do contact Padre sales,they will recommend you the best one among more than 3000 models now, you can send inquiry with your requirements at below, and you will get reply very soon.
